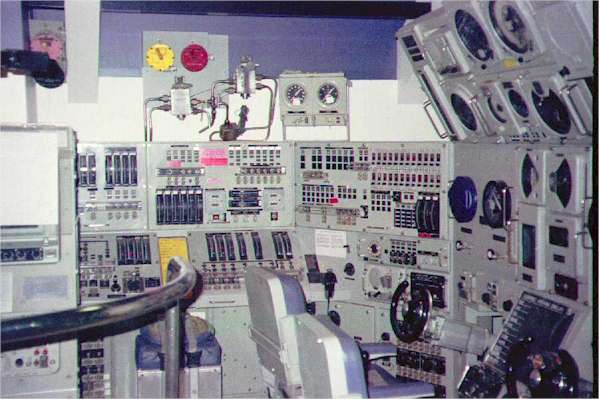

In this image you can see the Ship Control Console on the right edge. In the center background is the Ballast Control Panel (BCP). The 2 silver boxes above the BCP with tubes entering each side (just below the red and yellow alarm switches) are the Emergency Blow Actuators.
[click image for 600 x 600 version]

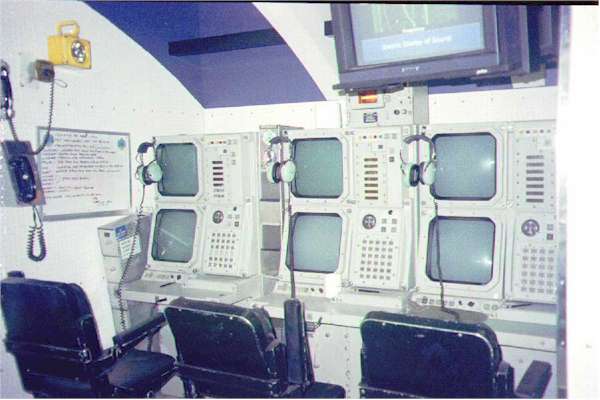

This is a representation of the Sonar Room. These Sonar workstations are much more "high tech" than the ones I remember from the early 1970's system.
[click image for 600 x 600 version]

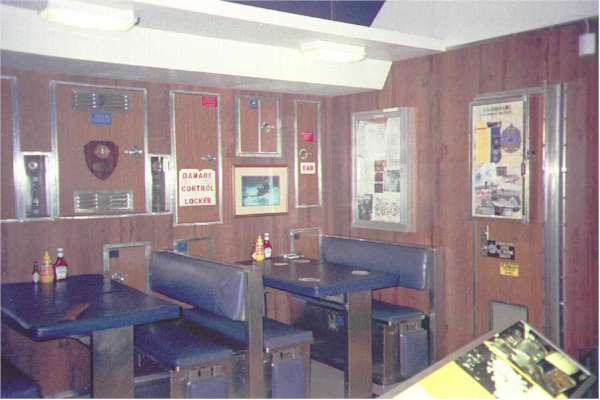

Here is the mock-up of the Crews Mess. This is reportedly from the USS Tepang.
[click image for 600 x 600 version]


More pictures of the Smithsonian Submarine Exhibit.
